Processor

Intel® Celeron J4125/N4000 Processor

Memory

1 onboard SO-DIMM DDR4 2133/2400MHz memory slot
Single memory slot supports up to 8GB

Expansion Slot

1 x M.2 Key M (2280mm, supports SATA SSD) 1 x MiniPCIe, supports Wifi+Bluetooth /4G expansion module

External Interface

1 x DC-IN
2 x HDMI
3 x USB2.0
2 x GbE LAN
1 x MIC-IN
1 x HP-OUT
5 x USB3.2 GEN1(5Gbps)
1 x REC
1 x RST
2 x LED 1 x HDD indicator (red) ; 1 x WIFI & 4G module data status indicator (green)
1 x PWR_BT

Built-in Interface

1 x Debug Socket
1 x LVDS Display Pin Header
1 x SATA_PWR Socket
1 x SATA Socket
1 x COM_CONN (4*COM232,COM1 supports RS232/485 jumpers)
1 x JFP pin
1 x GPIO pin
1 x AUDIO pin
1 x Speaker Socket
1 x F_USB2.0 pin

BIOS

AMI BIOS

Power Management

Supports advanced power management ACPI Supports real-time hardware monitoring Supports power-on and power-off

Display

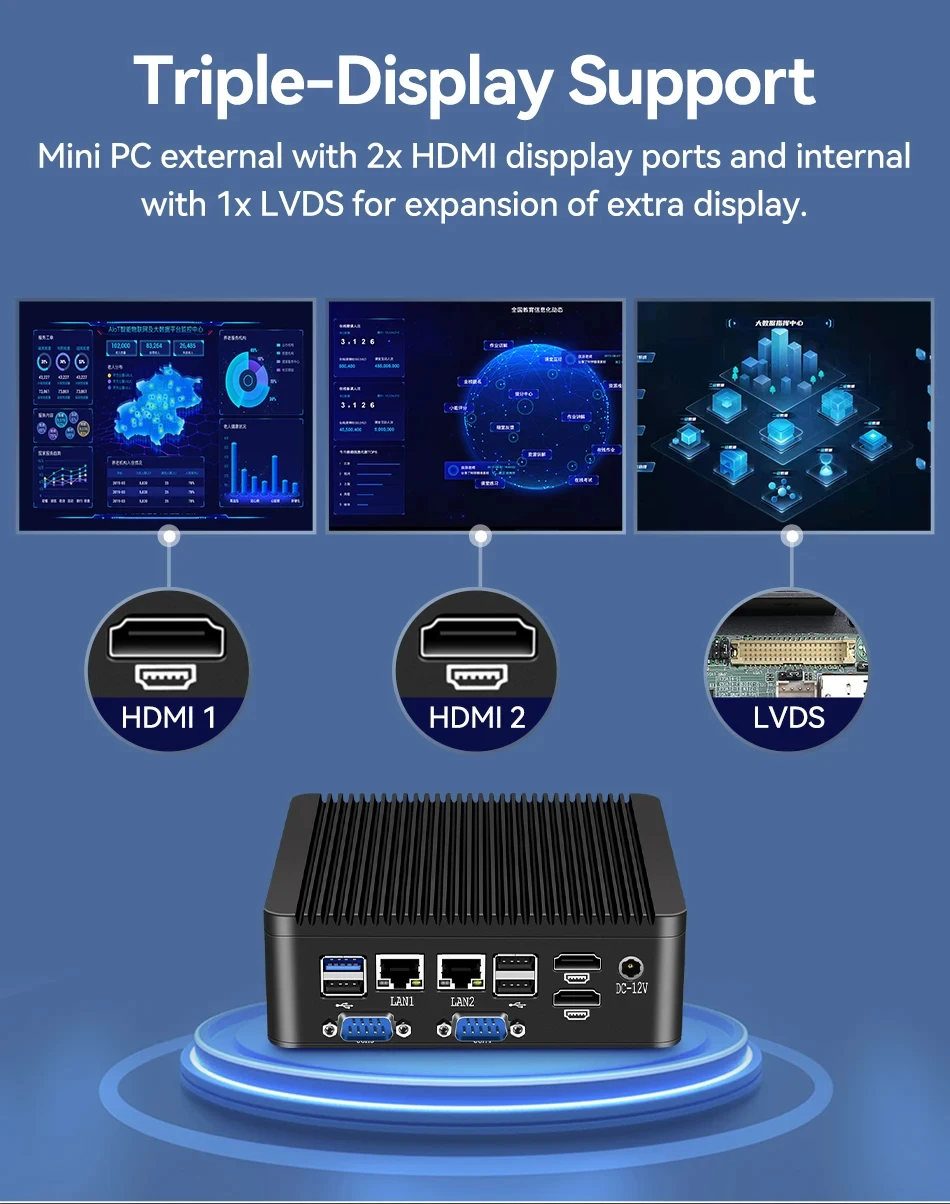

Support same/asynchronous triple display (HDMI1, HDMI2, LVDS3)

Backlight Adjustment

LVDS can support system/hardware under the adjustment, through the jump cap to choose the adjustment mode (default system)

Network

2 x Realtek Gigabit Ethernet (RTL8111H/8111G)

Audio

Realtek ALC662/ALC887; Integrated Amplifier NS4251 3W@4Ω max It is recommended that customers connect 3W/4Ω speakers or 2W/8Ω speakers

I/O chip

ITE8786E-I

Power supply

DC 12-19V power supply

Operating Environment

Operating temperature: -15℃~60℃
Ambient Humidity: 0%~95%

Operating System

Windows 10 / Windows 11 / Linux

Material

Aluminum alloy

Size

136*126*46mm

Color

Black

Item

Description

1

LVDS_EN

LVDS switch selection jumpers

2

PWM_SEL

LVDS backlight adjustment selection jumper

3

BKCT

LVDS control switch and brightness adjustment control socket

4

LVDS

LVDS screen display pin interface 2*20P

5

JPWR_LVDS

LVDS voltage selection jumper

6

SATA_PWR

SATA power pin connector

7

SATA

SATA interface socket

8

COM-CONN

Built-in serial port 4*COM

9

J1

RS232/RS485 signal selection jumper of COM1

10

JTXE

ME flash selection jumper

11

AUTO_ON

Automatic power-on selection jumper

12

JFP

External power switch pin interface

13

GPIO

GPIO pin interface 10P

14

FAN

Cooling fan socket

15

F_AUDIO

Front audio pin connector

16

JSPK

Amplifier pin interface

17

PWR

Built-in power supply socket

18

J_RUSB3

USB2.0 pin

19

M.2 SSD

M.2_SSD 2280 SATA

20

mPCIE

mPCIE (4G/WiFi/Bluetooth)

21

SO-DIMM

SO-DIMM DDR4
